ESP32网络摄像头方案

基于ESP32、MJPEG 640×480@10fps和ECS（暂由本地模拟）的 完整可控视频传输方案，包含启动/停止控制、状态反馈和优化策略。该方案实现了从设备控制到视频传输的完整闭环，预期在3Mbps带宽下可稳定运行。

硬件选择

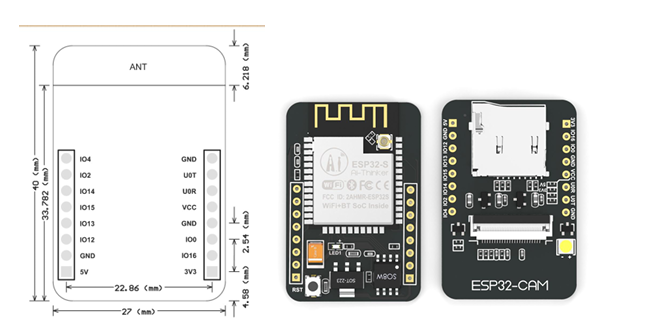

ESP32-CAM (ESP32 + OV2640)

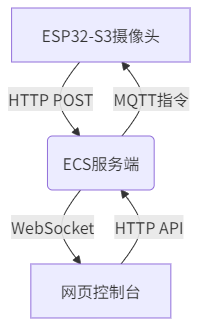

系统架构

环境搭建

以Windows为例：

MQTT Broker搭建

• 下载安装Mosquitto ，官网 https://mosquitto.org/download/

• 选择目录进行安装，安装目录之下会有一个mosquitto.conf，添加下面内容：

  # 监听所有网络接口（允许局域网访问）
  listener 10086 0.0.0.0

  # 允许匿名连接（测试用，生产环境需关闭）
  allow_anonymous true


  mosquitto.conf 参考 mosquitto.conf man page | Eclipse Mosquitto (opens new window)

• 安装目录之下，使用终端启动：

  .\mosquitto -c .\mosquitto.conf


• 新开终端，启动订阅（可选）

  # -t TOPIC
  .\mosquitto_sub -t 'cam/device1/ctrl' -v -p 10086


NodeJs搭建

官网： Node.js — 在任何地方运行 JavaScript (opens new window)

• 下载nodejs

• 创建目录，安装依赖

  npm install express multer mqtt ws


关键代码

esp32-s3的代码

#include "esp_camera.h"
#include <WiFi.h>
#include <HTTPClient.h>
#include <PubSubClient.h>

// 在全局或静态变量中标记初始化状态
static bool gpio_isr_installed = false;

// 摄像头配置
#define PWDN_GPIO_NUM  32
#define RESET_GPIO_NUM -1
#define XCLK_GPIO_NUM  0
#define SIOD_GPIO_NUM  26
#define SIOC_GPIO_NUM  27

#define Y9_GPIO_NUM    35
#define Y8_GPIO_NUM    34
#define Y7_GPIO_NUM    39
#define Y6_GPIO_NUM    36
#define Y5_GPIO_NUM    21
#define Y4_GPIO_NUM    19
#define Y3_GPIO_NUM    18
#define Y2_GPIO_NUM    5
#define VSYNC_GPIO_NUM 25
#define HREF_GPIO_NUM  23
#define PCLK_GPIO_NUM  22

// 4 for flash led or 33 for normal led
#define LED_GPIO_NUM   4

// Wi-Fi配置
const char* ssid = "wifi名";
const char* password = "wifi密码";
const char* serverURL = "http://127.0.0.1:10188/video";

// MQTT配置
const char* mqttServer = "127.0.0.1";
const int mqttPort = 10086;
const char* mqttTopic = "cam/device1/ctrl";

WiFiClient espClient;
PubSubClient mqttClient(espClient);
bool isStreaming = false;

// MQTT回调函数
void callback(char* topic, byte* payload, unsigned int length) {
  String message = String((char*)payload, length);
  if(message == "ON") {
    startStreaming();
  } else if(message == "OFF") {
    stopStreaming();
  }
}

void startStreaming() {
  // 初始化 GPIO ISR 服务（仅一次）（没有作用）
  if (!gpio_isr_installed) {
      esp_err_t ret = gpio_install_isr_service(0);
      if (ret != ESP_OK) {
        Serial.println("初始化GPIO ISR 服务失败");
        return;
      }
      gpio_isr_installed = true;
  }
  if(!isStreaming) {
    camera_config_t config;
    config.ledc_channel = LEDC_CHANNEL_0;
    config.ledc_timer = LEDC_TIMER_0;
    config.pin_d0 = Y2_GPIO_NUM;
    config.pin_d1 = Y3_GPIO_NUM;
    config.pin_d2 = Y4_GPIO_NUM;
    config.pin_d3 = Y5_GPIO_NUM;
    config.pin_d4 = Y6_GPIO_NUM;
    config.pin_d5 = Y7_GPIO_NUM;
    config.pin_d6 = Y8_GPIO_NUM;
    config.pin_d7 = Y9_GPIO_NUM;
    config.pin_xclk = XCLK_GPIO_NUM;
    config.pin_pclk = PCLK_GPIO_NUM;
    config.pin_vsync = VSYNC_GPIO_NUM;
    config.pin_href = HREF_GPIO_NUM;
    config.pin_sccb_sda = SIOD_GPIO_NUM;
    config.pin_sccb_scl = SIOC_GPIO_NUM;
    config.pin_pwdn = PWDN_GPIO_NUM;
    config.pin_reset = RESET_GPIO_NUM;
    config.xclk_freq_hz = 20000000;
    config.frame_size = FRAMESIZE_VGA; // 640x480
    config.pixel_format = PIXFORMAT_JPEG;  // for streaming
    //config.pixel_format = PIXFORMAT_RGB565; // for face detection/recognition
    config.grab_mode = CAMERA_GRAB_WHEN_EMPTY;
    config.fb_location = CAMERA_FB_IN_PSRAM;
    config.jpeg_quality = 12;
    config.fb_count = 2;
    esp_camera_init(&config); // 初始化摄像头
    isStreaming = true;
    Serial.println("视频流已启动");
  }
}

void stopStreaming() {
  if(isStreaming) {
    esp_camera_deinit(); // 释放摄像头资源
    isStreaming = false;
    Serial.println("视频流已停止");
  }
}

void setup() {
  Serial.begin(115200);
  Serial.setDebugOutput(true);
  Serial.println();
  // 初始化Wi-Fi（同前）
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) delay(500);
  Serial.println("Wi-Fi连接成功");
  // 连接MQTT
  mqttClient.setServer(mqttServer, mqttPort);
  mqttClient.setCallback(callback);
  while(!mqttClient.connect("ESP32CAM")) delay(500);
  mqttClient.subscribe(mqttTopic);
  mqttClient.publish(mqttTopic, "666");
  Serial.println("mqtt连接成功");
}

void loop() {
  mqttClient.loop();

  if(isStreaming) {
    camera_fb_t *fb = esp_camera_fb_get();
    if(fb) {
      // 发送视频帧（同前）
      HTTPClient http;
      http.begin(serverURL);

      String boundary = "1234567890";
      String body = "--" + boundary + "\r\n";
      body += "Content-Disposition: form-data; name=\"frame\"; filename=\"image.jpg\"\r\n";
      body += "Content-Type: image/jpeg\r\n\r\n";
      body += String((const char*)fb->buf, fb->len); // 注意：仅适用于文本安全的数据
      body += "\r\n--" + boundary + "--\r\n";

      http.addHeader("Content-Type", "multipart/form-data; boundary=" + boundary);
      http.POST(body); // 直接发送完整请求体

      http.end();
      esp_camera_fb_return(fb);
    }
    delay(100); // 10fps控制
  }
}

服务端代码

const express = require('express');
const mqtt = require('mqtt');
const app = express();
const cors = require('cors');  // 新增引入cors
app.use(express.json());

// 跨域设置
app.use(cors());

// 设备状态存储
let deviceStatus = {
  device1: {
    running: false,
    lastFrame: null
  }
};

// MQTT连接
const mqttClient = mqtt.connect('mqtt://127.0.0.1:10086');

// 控制指令接口
app.post('/control', (req, res) => {
  const { deviceId, command } = req.body;

  if(command === 'start') {
    deviceStatus[deviceId].running = true;
    mqttClient.publish(`cam/${deviceId}/ctrl`, 'ON');
  } else if(command === 'stop') {
    deviceStatus[deviceId].running = false;
    mqttClient.publish(`cam/${deviceId}/ctrl`, 'OFF');
  }

  res.json({ status: deviceStatus[deviceId] });
});

// 视频接收接口
const multer = require('multer');
const upload = multer();
app.post('/video', upload.single('frame'), (req, res) => {
  if(deviceStatus.device1.running) {
    deviceStatus.device1.lastFrame = req.file.buffer;
    broadcastToWeb(); // 转发到前端
  }
  res.sendStatus(200);
});

// WebSocket广播
const WebSocket = require('ws');
const wss = new WebSocket.Server({ port: 10081 });
function broadcastToWeb() {
  wss.clients.forEach(client => {
    if(client.readyState === WebSocket.OPEN) {
      client.send(deviceStatus.device1.lastFrame);
    }
  });
}

app.listen(10188);

前端代码

<!DOCTYPE html>
<html>
<head>
  <style>
    /* 整体容器样式 */
    .container {
      display: flex;
      flex-direction: column;
      align-items: center;
      gap: 20px; /* 元素间距 */
      padding: 20px;
      background-color: #f0f0f0;
      min-height: 100vh;
    }

    /* 画面区域样式 */
    #videoFeed {
      max-width: 100%;
      border: 3px solid #333;
      border-radius: 8px;
      box-shadow: 0 4px 8px rgba(0,0,0,0.1);
    }

    /* 按钮容器 */
    .button-group {
      display: flex;
      gap: 15px; /* 按钮间距 */
    }

    /* 按钮样式 */
    button {
      padding: 12px 24px;
      font-size: 16px;
      border: none;
      border-radius: 6px;
      cursor: pointer;
      transition: all 0.3s ease;
    }

    /* 启动按钮样式 */
    #startBtn {
      background-color: #4CAF50; /* 绿色 */
      color: white;
    }

    /* 停止按钮样式 */
    #stopBtn {
      background-color: #f44336; /* 红色 */
      color: white;
    }

    /* 悬停效果 */
    button:hover {
      opacity: 0.9;
      transform: translateY(-2px);
    }
  </style>
</head>
<body>
  <div class="container">
    <img id="videoFeed" width="640" height="480">

    <div class="button-group">
      <button id="startBtn" onclick="sendCommand('start')">启动设备</button>
      <button id="stopBtn" onclick="sendCommand('stop')">停止设备</button>
    </div>
  </div>

  <script>
    const ws = new WebSocket('ws://127.0.0.1:10081');
    ws.binaryType = 'arraybuffer';
    const img = document.getElementById('videoFeed');

    // 接收视频流
    ws.onmessage = (event) => {
      const blob = new Blob([event.data], { type: 'image/jpeg' });
      img.src = URL.createObjectURL(blob);
    };

    // 发送控制指令（添加了错误处理）
    function sendCommand(cmd) {
      fetch('http://127.0.0.1/control', {
        method: 'POST',
        headers: { 'Content-Type': 'application/json' },
        body: JSON.stringify({ deviceId: 'device1', command: cmd })
      })
      .then(response => {
        if (!response.ok) throw new Error('控制失败');
        console.log(`${cmd} 指令发送成功`);
      })
      .catch(error => console.error('控制错误:', error));
    }

    // 关闭连接时清理资源
    window.addEventListener('beforeunload', () => {
      ws.close();
    });
  </script>
</body>
</html>
